SP608E 8 Signal Output RGB LED Strip Controller

APP Operation

· Open the APP and click the “+” button in the top right corner of the home page to add a device, then click the device to enter the control page.

· Users can rename the controller by clicking on the “:” button in the upper right corner.

· SP608E can output 8 way different signals, you can click channel 1 ~ channel 8 to enter the corresponding page for individual control, or click all channels for unified control.

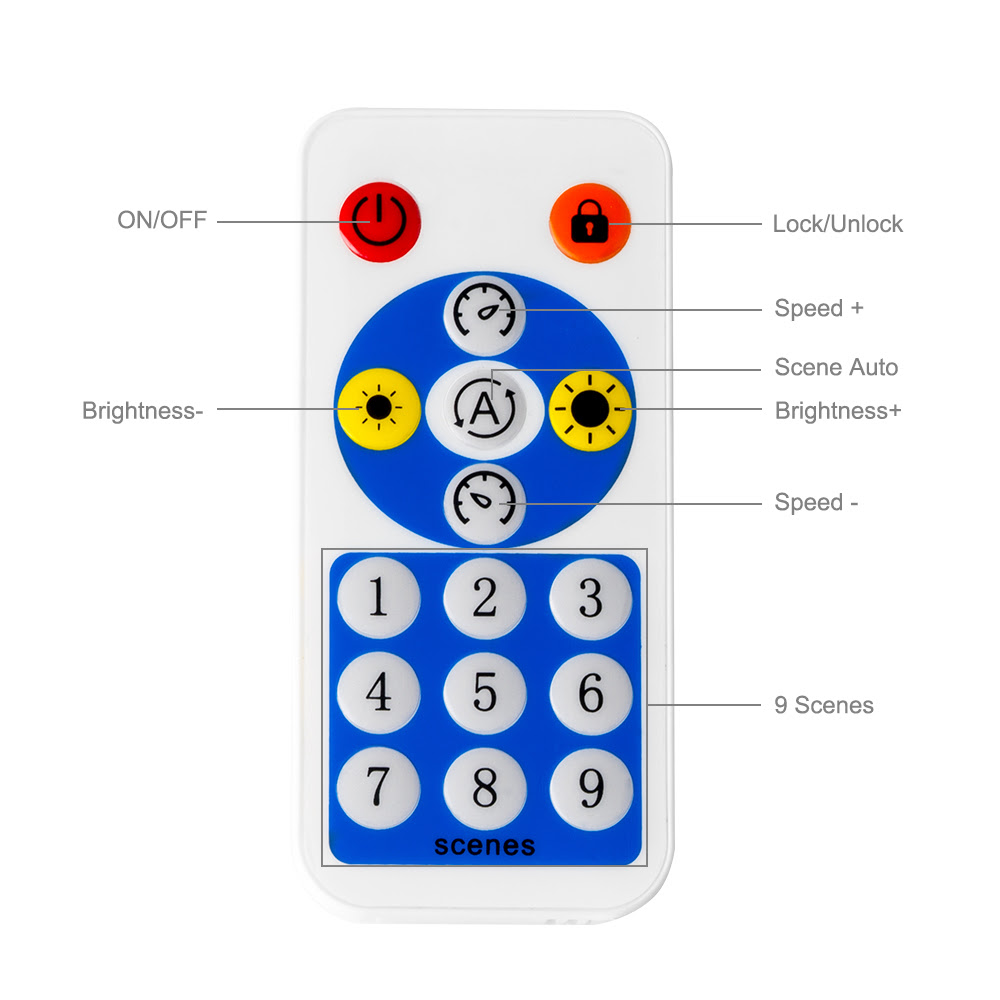

· After adjusting the effects of each channel, click the “:” button in the upper right corner to save the current lighting effect settings to the scenes, SP608E supports a total of 9 scenes, users can call these 9 scenes through the scene page of the mobile APP or use the RF remote control.

· Users can set up five timing events by click on “clock” button in the upper right corner, please note that all timing events will be deleted when the controller is powered down.

· On the effects page, there are a variety of music and non-music effects, and users can set the speed, brightness, effect length and color for specific effects.

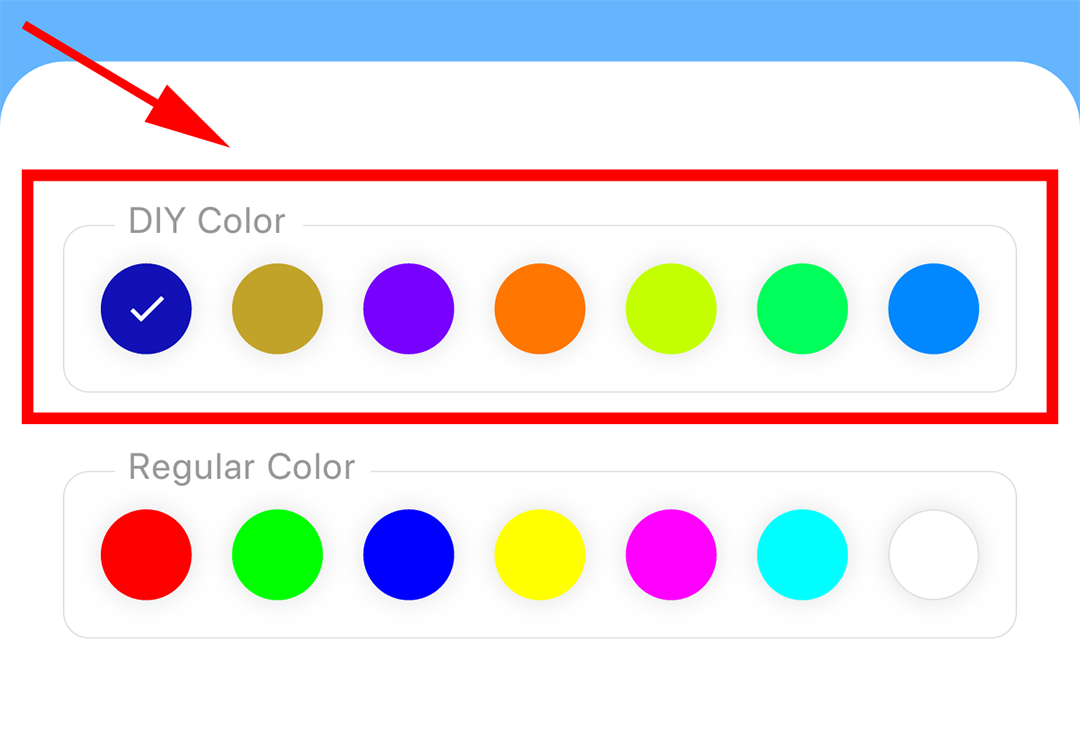

· On any single-channel page, click the upper right corner “:” button to verify the color and cop the channel, and copy the effect of the current channel to any other channel.

· On the trigger page, there are four triggers, and each trigger has preset effects and dynamic effects, click the “ON/OFF” button, of the trigger to switch between preset effect and custom effect, you can click any of the triggers area to enter the dynamic effect selection interface. Click the upper right corner, “√” button to confirm the selected effect, and upper left corner “X” button to cancel. Long press the trigger area to change the trigger name, trigger lasting time, trigger channel.

· On the grouping page, click “+” button in the lower right corner to add groups, select the channel associated with groups, and click OK to set the names of groups, the group page shows the added groups, and click in controls the effect mode of the channel associated with the group.
